礦用隔爆攝像儀-除塵款

礦用隔爆攝像儀-除塵款

産品詳情

産品特點

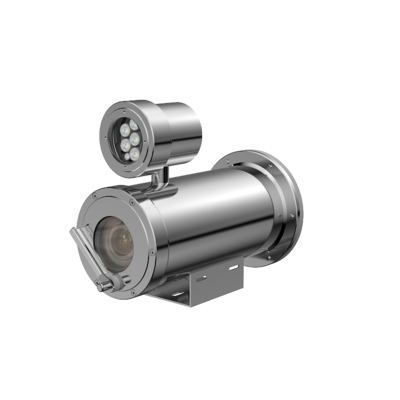

KBA127礦用攝像儀用于Zone01環境Ⅰ類氣體組以下（典型氣體爲甲烷、瓦斯等），適用礦井下各種需要監控的場所。

攝像儀采用光端機、網絡攝像機以光纜或視頻電纜傳輸監控信號。

KBA127礦用攝像儀內置超低照度攝像機或者紅外高清網絡攝像機，能在光線較暗或者無光的條件下獲得良好的監視效果。

不鏽鋼構造，能在0℃到+40℃溫度條件下長時間穩定工作。

供電電壓範圍85VAC~265VAC。

視窗采用特殊的鋼化平板玻璃制作，在堅固耐用的同時，保證了畫質的清晰。

以太網信號傳輸提高了系統應用的靈活性；光傳輸在保證信號質量的同時，使得傳輸距離有效提升。

技術參數

清潔	除塵方式	采用雨刮除塵方式，除尘头与机芯联动，在后端控制雨刮驱动达到对摄像仪视窗处进行清潔。
一般規範	防爆型式	ExdⅠ，MA
	使用溫度(℃)	-25～60
	相對濕度	≤95% (+25℃)
	進線口	3個G3/4”防爆進線口內孔直徑Φ14
	材質	不鏽鋼（304）
	外形尺寸(L×W×H)	406×155×243mm
	內腔尺寸	300×115mm
	視鏡玻璃尺寸	Φ75
	重量 (Kg)	13
	電源	輸入：AC86V～265VAC，
	照射距離	30-60米
收發器	網口	2光3電（可選單纖，雙纖）
收發器	傳輸距離/接口	20KM，SC接口单模
攝像機參數	有效像素	400萬4倍自調節機芯
	傳感器類型	1/2.8" Progressive Scan CMOS
	分辨率	2560×1440
	焦距	2.8-12MM
	最低照度	彩色：0.05Lux @ (F1.6，AGC ON) 黑白：0.01Lux @ (F1.6，AGC ON)
	白平衡	自動1/自動2/室内/室外/手动/钠灯/日光灯
	日夜模式	自動/彩色/黑白
	聚焦模式	自動聚焦/半自動聚焦/手动可选
	信噪比	＞52dB（AGC off）
	電子快门	1/1秒 ~ 1/30,000秒
