産品詳情

産品特點

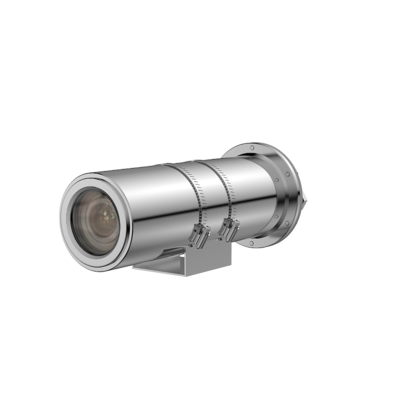

KBA127礦用攝像儀.用于Zone01環境Ⅰ類氣體組以下（典型氣體爲甲烷、瓦斯等），適用礦井下各種需要監控的場所。

攝像儀采用光端機、網絡攝像機以光纜或視頻電纜傳輸監控信號。

KBA127礦用攝像儀内置超低照度摄像机或者红外高清網絡攝像機，能在光線較暗或者無光的條件下獲得良好的監視效果。

不鏽鋼構造，能在0℃到+40℃溫度條件下長時間穩定工作。

供電電壓範圍85VAC~265VAC。

視窗采用特殊的鋼化平板玻璃制作，在堅固耐用的同時，保證了畫質的清晰。

以太網信號傳輸提高了系統應用的靈活性；光傳輸在保證信號質量的同時，使得傳輸距離有效提升。

技術參數

	防爆型式	ExdⅠ，MA
	使用溫度(℃)	-25～60
	相對濕度	≤95% (+25℃)
	進線口	3個G3/4”防爆進線口內孔直徑Φ14
一般規範	材質	不鏽鋼（304）
	外形尺寸(L×W×H)	398×148×230mm
	內腔尺寸	300×115mm
	視鏡玻璃尺寸	Φ75
	重量 (Kg)	8
	電源	輸入：AC86V～265VAC，
冷光源	照射距離	30米
	網口	2個，2光3電口
光端機	傳輸距離/接口	20KM，SC接口单模
攝像機參數	有效像素	400萬
	傳感器類型	1/2.8" Progressive Scan CMOS
	焦距	6mm
	水平視場角	(廣角-望遠)
	最低照度	彩色：0.05Lux @ (F1.6，AGC ON) 黑白：0.01Lux @ (F1.6，AGC ON)
	白平衡	自動1/自動2/室内/室外/手动/钠灯/日光灯
	日夜模式	自動/彩色/黑白
	數字變倍	無
	透霧	电子透霧
	光圈數	F1.6-F3.5
	聚焦模式	自動聚焦/半自動聚焦/手动可选
	信噪比	＞52dB（AGC off）
	電子快門	1/1秒 ~ 1/30,000秒
