産品詳情

産品功能：

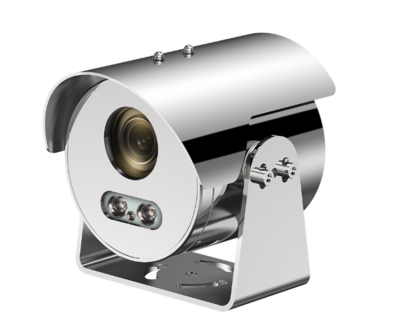

KBA12礦用本安型攝像儀可提供12560 × 1440@25fps的高清晰视频图像的監控設備。主要用于配套電液控支架系統，單軌運輸、移動式、載人、非煤礦山，載物等車輛，攝像儀把攝像機、光電交換機融合在一起，攝像儀可配接電纜接口和網絡信號接口。

用途特點：

KBA12礦用本安型攝像儀用于煤矿井下有瓦斯、煤尘爆炸危险的场所。本摄像仪是煤矿工业电视系统中对主要生产环节、重要设备及关键岗位进行实时图像监视对讲的关键设备，可同时采用光缆或电缆传输。本摄像仪結構紧凑，体积小，重量轻，防爆，抗震，防潮，适合于煤矿井下使用。

技術參數

産品型號		KBA12
本安參數	防爆型式	ExibⅠMb
	工作電壓	DC10V-18V
	工作電流	≤800mA
工作環境	環境溫度	0℃~40℃
	相對濕度	≤95%RH（+25℃）
	環境狀況	應用在煤礦井下、礦山等高危場所、非煤礦山
機械參數	材質	304不鏽鋼
	結構	带有密封圈的筒状結構
	重量	2Kg
	防護等級	IP54
	出線孔規格	2個G4/3
補光燈參數	紅外燈數量	2顆紅外燈，燈投射距離： 30m
攝像機參數	最大圖像尺寸	2560 × 1440
	幀率	50Hz: 25fps
	通訊接口	2個RJ45網線接口（可集聯2-8台設備）最大傳輸距離100米
	鏡頭	4mm（2.8mm，6mm，8mm可選）
	傳感器類型	1/2.7" Progressive Scan CMOS
	最小照度	彩色:0.05 Lux ，黑白:0.001Lux @(F1.2,AGC ON) ,0 Lux with IR
	快門	1/3秒至1/100,000秒
	日夜轉換模式	ICR紅外濾片式
	寬動態範圍	120dB
	背光補償	支持，可選擇區域
	數字降噪	3D 數字降噪
	視頻壓縮標准	H.265 / H.264 / MJPEG

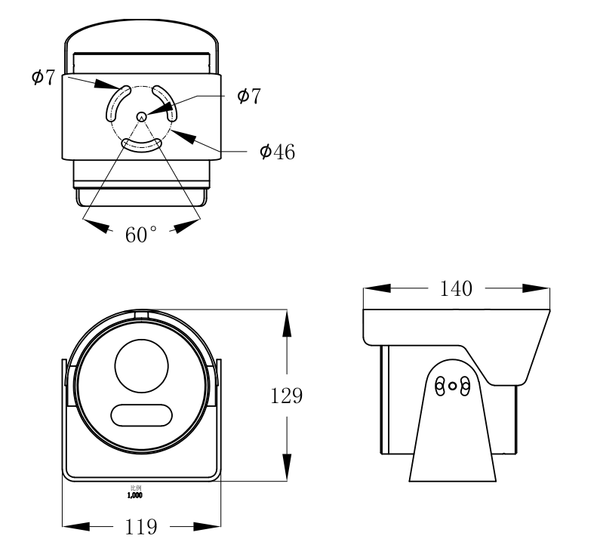

産品尺寸
